Changing Spark Plugs Yourself – Step by Step
Spark plugs are small components with a huge impact on engine operation. Replacing them is easier than you might think. Find out how to restore full power and reliable starting to your car.
- Spark plugs generate the spark that initiates the combustion of the fuel and air mixture, so their efficiency is crucial to the operation of the engine.
- There are standard (nickel), iridium and platinum spark plugs, and dedicated models are used in cars with LPG.
- Spark plug wear is manifested by, among others, difficult starting, loss of power, fluctuating RPMs and increased fuel consumption.
- When replacing, use the appropriate wrench or torque wrench to avoid damaging the thread and to ensure proper tightening.
- Regularly checking and replacing your spark plugs can help avoid more serious engine problems.
- See also what to do if the car does not start on a cold engine!
- What are spark plugs and what importance do they have for the engine?
- How is a spark plug constructed?
- Types of spark plugs
- What are the symptoms of worn spark plugs?
- What tools are needed to replace a spark plug?
- Step by Step – How to Safely Remove Old Spark Plugs?
- How to recognize the condition of spark plugs?
- How to properly install new spark plugs?
- How hard should spark plugs be tightened to avoid damage?
- What risks can occur and how to avoid them when changing spark plugs?
- How often should you change your spark plugs to ensure proper engine operation?
What are spark plugs and what importance do they have for the engine?
Primarily spark plugs are mounted in the engine head and allow for the creation of a spark necessary to initiate the combustion process. They are responsible for generating the spark necessary to initiate combustion of the fuel and air mixture inside the engine chamber. Spark plugs are usually mounted in the engine head, thanks to which the spark can be created exactly where the mixture is burned.
If the spark plugs are working properly, the driver can count on a smooth ride without jerking or starting problems. However, when they are worn or damaged, it often manifests itself in difficulties starting the engine, a drop in power or increased fuel consumption. For this reason, regular replacement of spark plugs is an extremely important element of taking care of the condition of the drive unit.

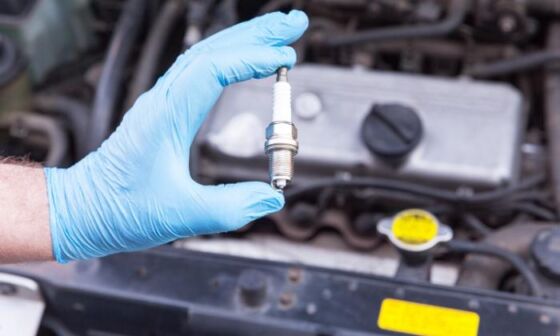

How is a spark plug constructed?
Wondering what a spark plug looks like? In appearance, a spark plug is somewhat similar to a classic wax candle – it is elongated, and at its top there is a narrow metal connector.
Although the spark plug may look like a fairly simple design from the outside, it actually consists of several key components responsible for effectively generating a spark in the combustion chamber. construction of a spark plug consists of: central electrode (middle), ground electrode (side), ceramic insulator and threaded housing, which enables installation in the engine head. All these elements are manufactured from materials resistant to extreme conditions – high temperature, high pressure and aggressive combustion environment.
Types of spark plugs
Spark plugs should always be adapted to the specifics of a given engine – unfortunately, there is no one universal model that fits all cars. Due to the very demanding operating conditions (high temperature, pressure, shocks and the effects of chemical compounds), manufacturers use durable metal alloys for their production.
The three most common basic ones are: types of spark plugs:
- Standard (nickel) – basic solution, used in most petrol engines.
- Iridium – have an iridium tip, which makes them better at extreme temperatures and wear out slower.
- Platinum – are characterized by exceptional durability and longer service life compared to standard models.
There are also special spark plugs for cars with LPG installations. Usually their design is slightly different, because it must be adapted to the high temperature of gas combustion.

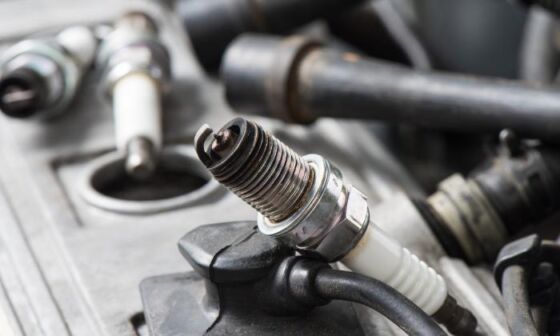

What are the symptoms of worn spark plugs?
Time for the next topic, so spark plug wear symptoms. These are often similar symptoms to failures of other ignition system components (e.g. coils or wires). The most common symptoms include:
- Difficulty starting the engine, especially at low temperatures;
- Idle speed fluctuation and dimming of the drive unit;
- Significant drop in power and jerking while driving, resulting from misfiring;
- Increased fuel consumption, sometimes accompanied by smoke from the exhaust.
It is worth remembering that spark plugs must meet extremely demanding operating conditions. On the one hand, their lower part is exposed to very high pressure in the combustion chamber, on the other – the entire plug is exposed to high temperatures. In addition, there are vibrations and oscillations or chemical compounds created during fuel combustion.
Check also, what should it look like replacement of brake pads!
What tools are needed to replace a spark plug?

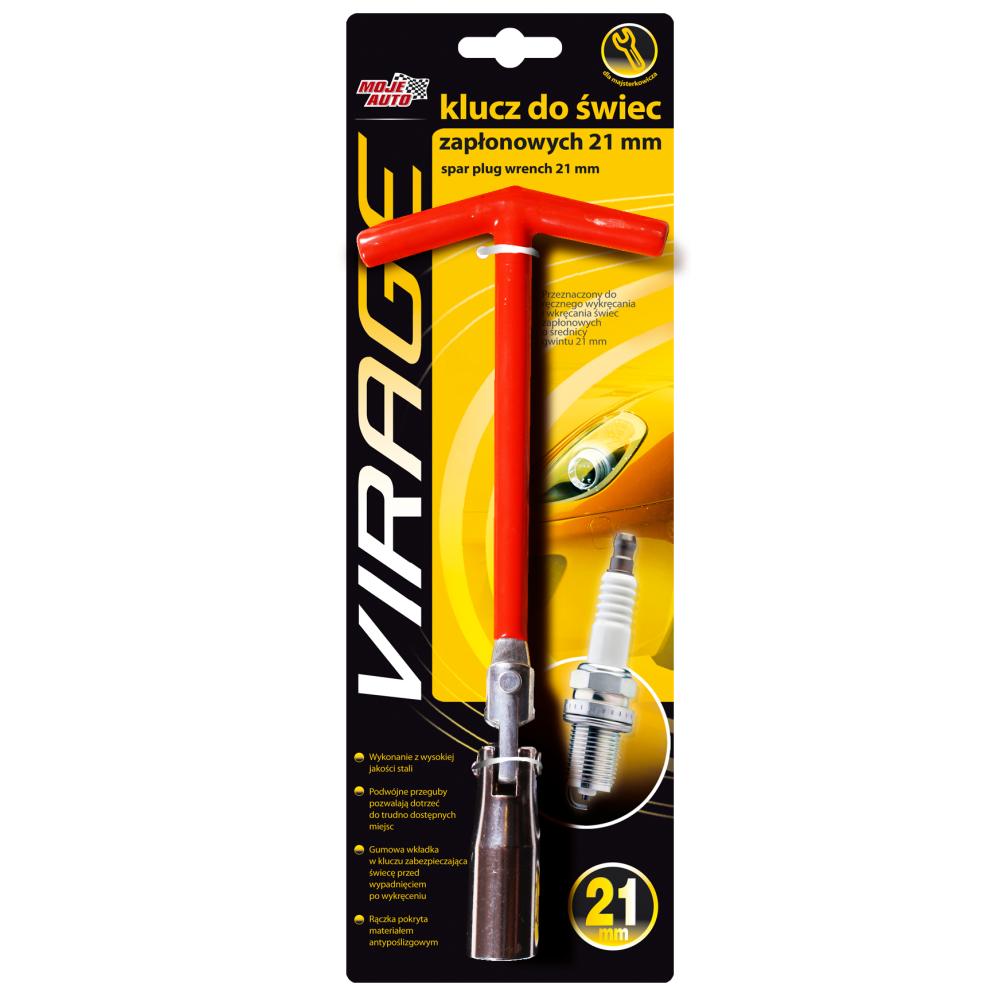

The basis for safe and effective exchange is proper spark plug wrench, preferably with a special rubber insert. Thanks to it, the spark plug will not fall out after unscrewing. However spark plug wrench That's not all, it's also worth getting a torque wrench to know how hard to tighten the spark plug and thus prevent the thread from breaking in the head. What else is worth getting? Extensions for wrenches, a penetrating agent for seized threads and a soft brush or compressed air to clean the space around the spark plugs will also be useful. Thanks to this, any dirt will not get into the engine after unscrewing the old spark plug. In order not to get your hands dirty - it's also worth getting speckled work gloves.
Step by Step – How to Safely Remove Old Spark Plugs?

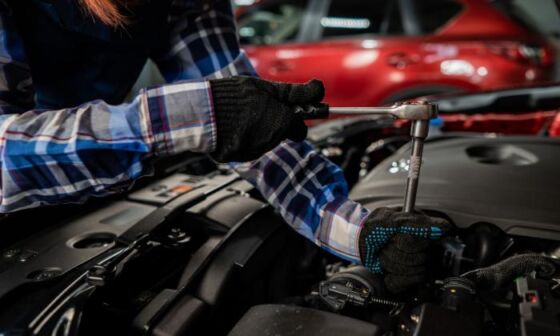

Before starting work related to replacing spark plugs you should turn off the engine and wait for it to cool down. This is very important. Hot parts pose a risk of burns, and a seized spark plug is more difficult to unscrew. After moving the high-voltage cables or removing the coils (depending on the engine design), it is worth removing dirt from the area around the spark plug sockets. This makes it easier to avoid dirt getting into the combustion chamber. Then you can use a spark plug wrench and ratchet, unscrewing each spark plug with a firm movement, but without excessive force. If the spark plugs are very seized, it is worth spraying the thread with a penetrating agent and waiting a few minutes.
How to recognize the condition of spark plugs?

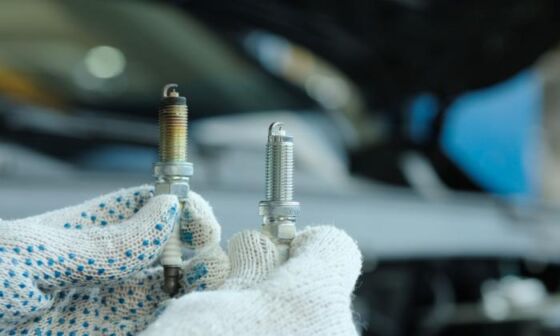

During disassembly it is a good idea to look at each removed spark plug. Such spark plug diagnostics allows not only to determine their wear, but also to detect any problems in the engine. Burnt electrodes, soot or traces of oil may indicate problems with the fuel system, too rich or too lean mixture or blow-by in the combustion chamber. An even light brown coating usually indicates the correct operation of the unit.
Ignored spark plug failures that result in misfiring can be dangerous for the catalytic converter, as unburned fuel enters the exhaust system. Regular spark plug replacement, in accordance with the manufacturer's recommendations, helps avoid similar problems.
Check also, how often to change brake fluid!
How to properly install new spark plugs?
After removing the old elements, the new ones must be installed spark plugs, preferably according to the car manufacturer's instructions. It is worth paying attention to choosing the right model with the right temperature and maintaining the recommended gap between the electrodes. Always start screwing the spark plug in manually to feel the correct thread entry into the socket and avoid damaging it. Only after initial tightening is it enough to use a torque wrench and apply the torque in accordance with the manufacturer's recommendations. This will prevent the thread from breaking (too much torque) or under-tightening (too little torque), which results in a leak in the combustion chamber.
How hard should spark plugs be tightened to avoid damage?
You can of course screw in the spark plugs using a spark plug wrench or using a torque wrench. Are you wondering, How much force should you use to unscrew the spark plugs? Manufacturers sometimes specify a specific torque range, such as 15–25 Nm for standard spark plugs in M14-threaded petrol engines. Some more modern models with smaller threads (M12) require values of 10–15 Nm. If you don’t have a torque wrench, you can follow the recommendations in your car’s manual or the general guidelines of turning the spark plug a fraction of a turn after initial contact with the head.
What risks can occur and how to avoid them when changing spark plugs?
What to avoid during replacing spark plugs? Tightening the spark plug too much will result in stripping the thread, which can result in very expensive repairs. On the other hand, tightening it too loosely will expose the engine to leaks, spark plug overheating and loss of power. It is also worth paying attention to the cleanliness of the spark plug sockets and the correct arrangement of the wires or ignition coils - an incorrect order can result in ignition problems. Using a professional spark plug wrench and a torque wrench will help you avoid mistakes and the risk of damage to a large extent. It is therefore worth using these tools and helping yourself, for example, LED flashlightto avoid problems.
How often should you change your spark plugs to ensure proper engine operation?
Interval replacing spark plugs depends on the type of spark plug and operating conditions. In the case of basic nickel spark plugs, it is often recommended to replace them between 30 and 45 thousand km. In turn, iridium or platinum spark plugs have a longer life and can work for up to 60 to 100 thousand km. But that's not all. It is worth remembering that in extreme conditions, such as intensive city driving or sports loads, the condition of the spark plugs should be checked more often, usually every several thousand kilometers. If we are not sure how often to replace the spark plugs in a given engine model, it is best to check the car manufacturer's recommendations or consult a qualified mechanic.

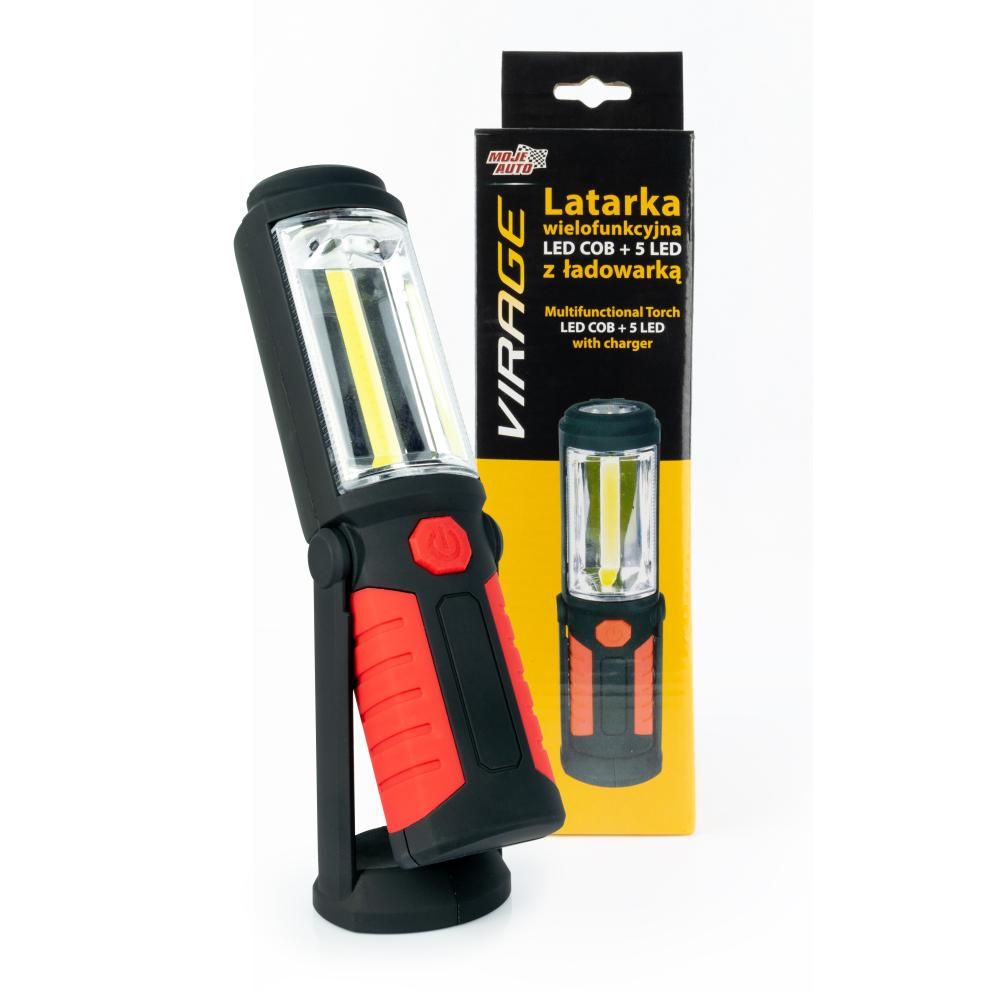

Moje Auto Virage VIRAGE - COB + 5 LED multifunctional LED flashlight with charger
Where to buy View productReplacing spark plugs is a task that can be done at home, as long as you have some basic knowledge and the right tools, such as a spark plug wrench and a torque wrench. We hope that our guide will make it easier.
